Contour edgebanding
Hot-Air Contour Edgebander for External Edges
Edge banding for external panel contours
Apply edgebanding tape to external curved panel edges using hot-air heating and controlled tape feeding. Trimming is performed manually after edgebanding.
Panel thickness
10–60 mm
Heating
Hot air
Edge trimming
Manual
Review application conditions and configuration details below.

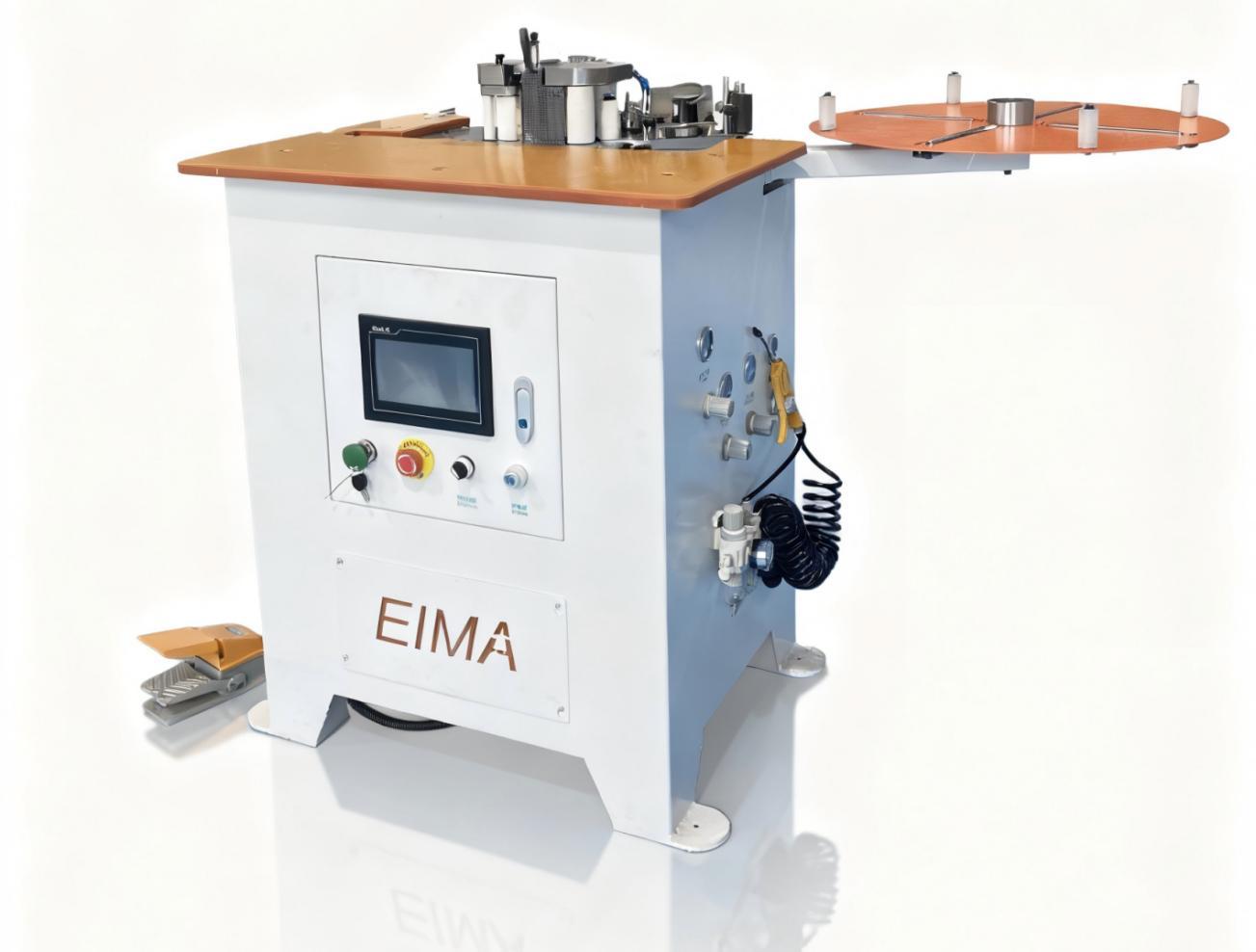

View original equipment photo ↗ · Current configuration subject to confirmation
01 / OVERVIEW
How the machine works
Touchscreen settings and foot-pedal operation support tape feeding and cutting. Match the tape and panel geometry to the application, then trim the edges manually after edgebanding.
01
Prepare the panel and suitable tape
02
Apply edgebanding to the external contour
03
Trim the edge manually and inspect the result
02 / APPLICATION FIT
Check the material and process requirements.
01
External panel contours and the required bend radius
02
Edgebanding tape type, dimensions and activation requirements
03
Panel dimensions and manual trimming after edgebanding
Panel thickness: 10–60 mm. R7 means a radius of 7 mm. Discuss the specific panel contour and tape with EIMA when selecting the setup.
03 / PROCESS & SAMPLES
See how it operates. Check the sample result.
VIDEO / TO BE ADDED
Machine in operation
Add a real machine demonstration with the material and configuration identified.
SAMPLE / TO BE ADDED
Edge surface
Add an approved close-up of a finished sample.
SAMPLE / TO BE ADDED
Adhesive layer & edge joint detail
Add a matching detail photo with material and configuration notes.
Material
To be added
Configuration
To be added
Process conditions
To be added
04 / MACHINE CONFIGURATION
Machine components & configuration
01
Work surface and tape tray
Work surface and tape tray for panel and tape handling.
DETAIL / TO BE ADDED
Work surface and tape tray
Add the corresponding approved component photograph.
02
Hot-air heating and tape feeding
Hot-air heating with manual and preset-length tape feeding and cutting.
DETAIL / TO BE ADDED
Hot-air heating and tape feeding
Add the corresponding approved component photograph.
03
Touchscreen and foot-pedal controls
The manual describes touchscreen settings and foot-pedal operation. The setting labelled “laser mode” relates to tape detection and cutting control; the heat source is hot air.
DETAIL / TO BE ADDED
Touchscreen and foot-pedal controls
Add the corresponding approved component photograph.
Descriptions are based on the supplied documentation. Confirm standard equipment, optional features and the configuration supplied with your order.
05 / SPECIFICATIONS
Key specifications.
Panel thickness and the meaning of R7 follow the latest company clarification. Electrical values are from the supplied manual. This external-edge machine has no separate model designation.
| Item | Specification |
|---|---|
| Equipment type | Hot-air contour edgebander for external edges |
| Power supply | AC 220 V, 50 Hz; single-phase |
| Total power | 4.5 kW |
| Heating power | 4 kW |
| Panel thickness | 10–60 mm |
| Radius notation | R7 = 7 mm radius |
