Tape preparation
EM-60S
Edgebanding tape coating machine
EM-60S applies laser-activatable adhesive to PVC or ABS edgebanding tape. The tape is coated, cooled and rewound for a separate edgebanding process.
Power supply
380 V · 3-phase
Total power
8 kW
Tape width (brochure)
16–65 mm
Review application conditions and configuration details below.

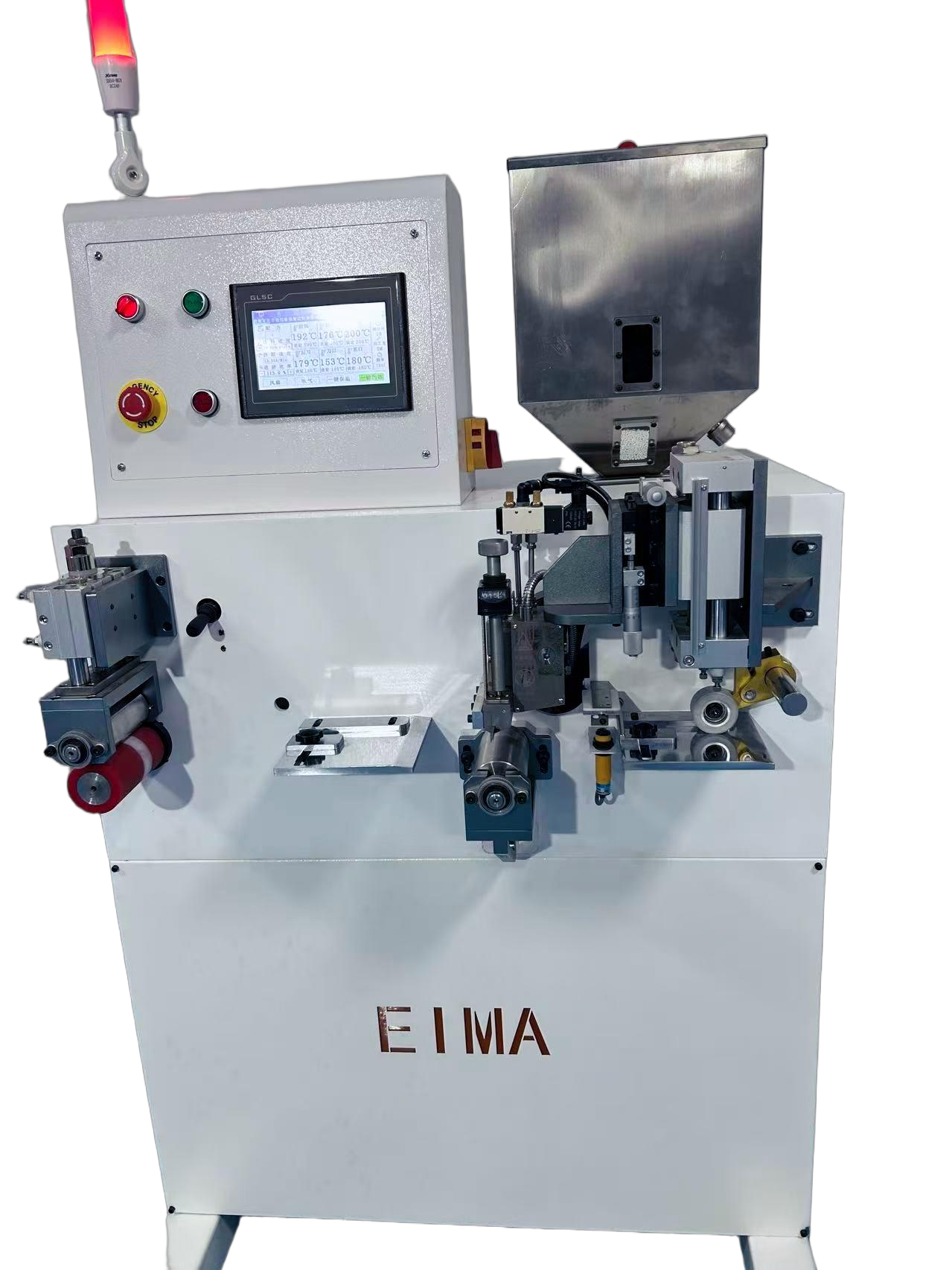

View original equipment photo ↗ · Current configuration subject to confirmation
01 / OVERVIEW
How the machine works
A heated adhesive supply feeds an adjustable coating head. Servo-driven tape feeding, cooling and rewinding support the tape preparation process.
01
Feed the edgebanding tape
02
Apply adhesive to the back
03
Cool and rewind the coated tape
02 / APPLICATION FIT
Check the material and process requirements.
01
Tape material, dimensions and adhesive type
02
Required coating and compatibility with the downstream edgebander
03
Rewinding equipment, installation layout and utilities
For PVC and ABS edgebanding tape with laser-activatable adhesive. Feed speed can be configured for the application; special adhesive colours require custom preparation.
Application example supplied by EIMA: PVC/ABS tape, 10–70 mm wide, with laser-activatable adhesive at 40 m/min. This application example is separate from the 16–65 mm brochure width range below. Discuss the required tape width and configuration with EIMA.
03 / PROCESS & SAMPLES
See how it operates. Check the sample result.
VIDEO / TO BE ADDED
Machine in operation
Add a real machine demonstration with the material and configuration identified.
SAMPLE / TO BE ADDED
Coated tape surface
Add an approved close-up of the prepared edgebanding tape.
SAMPLE / TO BE ADDED
Adhesive layer detail
Add a matching detail photo with material and configuration notes.
Material
To be added
Configuration
To be added
Process conditions
To be added
04 / MACHINE CONFIGURATION
Machine components & configuration
01
Adhesive heating and temperature control
Heated adhesive supply with temperature control.
DETAIL / TO BE ADDED
Adhesive heating and temperature control
Add the corresponding approved component photograph.
02
Tape feeding and coating head
PLC control, servo-driven tape feeding and an adjustable coating head.
DETAIL / TO BE ADDED
Tape feeding and coating head
Add the corresponding approved component photograph.
03
Cooling and rewinding
Air cooling and semi-automatic rewinding. Automatic tape joining and fully automatic rewinding are listed as options; confirm the configuration for your order.
DETAIL / TO BE ADDED
Cooling and rewinding
Add the corresponding approved component photograph.
Descriptions are based on the supplied documentation. Confirm standard equipment, optional features and the configuration supplied with your order.
EM-60S uses AC 380 V, 50 Hz three-phase power, with neutral and protective earth, plus a compressed-air supply.
05 / SPECIFICATIONS
Brochure specifications.
EM-60S brochure values, retained following the latest company confirmation. The application example above describes a separate tape-width range.
| Item | Specification |
|---|---|
| Power supply | AC 380 V, 50 Hz; three-phase, with neutral and protective earth |
| Total power | 8 kW |
| Compressed-air pressure | 5–6 kg/cm² (brochure notation) |
| Feed speed | 5–50 m/min; configured for the application |
| Tape width — brochure range | 16–65 mm |
| Tape thickness | 0.4–3 mm |
| Machine length | 900 mm |
| Net weight | 650 kg |
06 / RESOURCES & ENQUIRY
Discuss your application.
Product brochure
Product information available on request.
Configuration sheet
Request the configuration for your application.
Demonstration
Approved footage to be added.
