Tape preparation
EM-25
Adhesive film laminator for edgebanding tape
EM-25 bonds adhesive film to edgebanding tape with hot air. The prepared tape is then used in a separate laser edgebanding process.
Power supply
220 V · single-phase
Rated power
4 kW
Continuous feed speed
Below 20 m/min
Review application conditions and configuration details below.

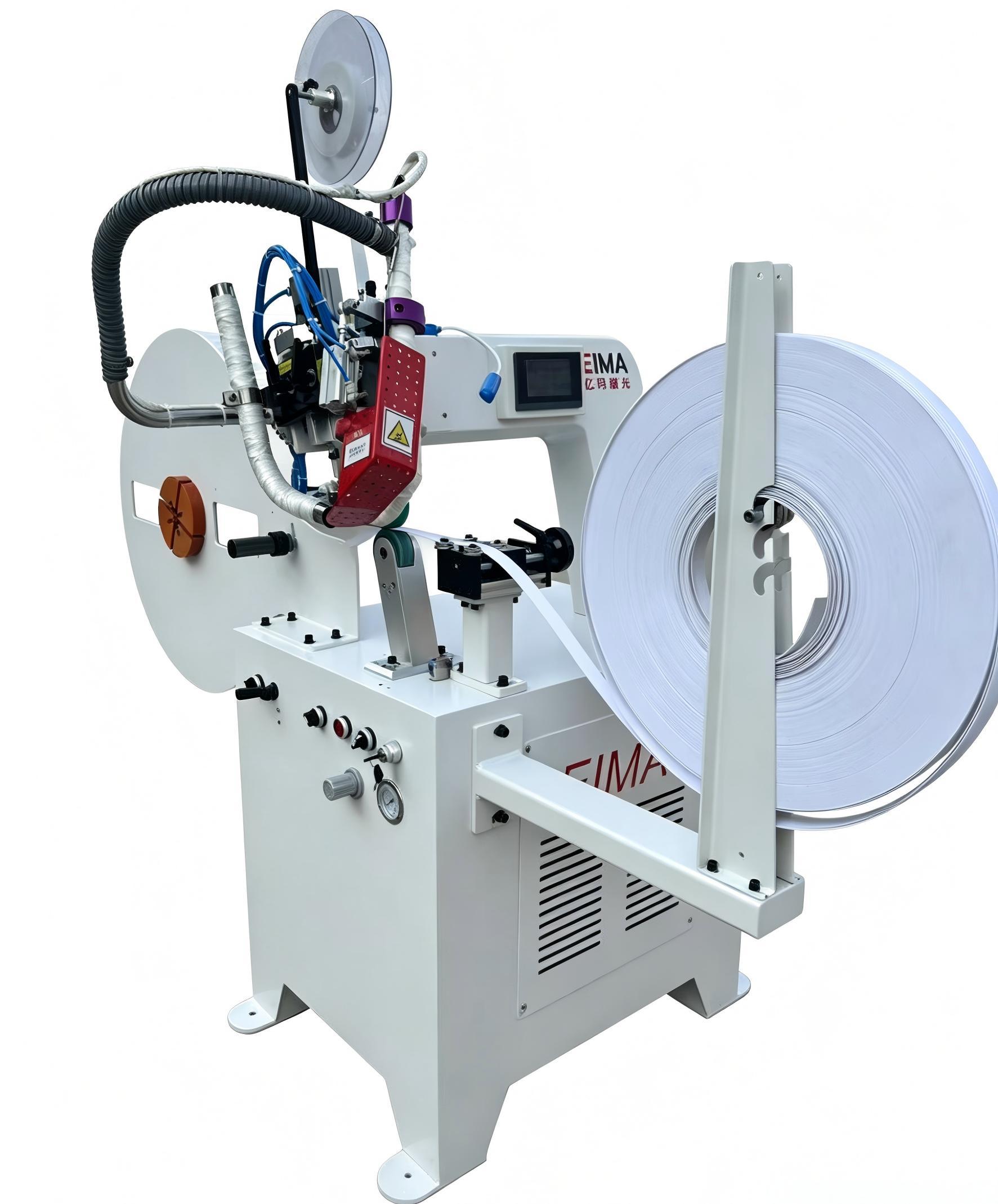

View original equipment photo ↗ · Current configuration subject to confirmation
01 / OVERVIEW
How the machine works
Load the tape and adhesive film onto the feed tray. Hot-air heating and pressure rollers bond the layers, producing prepared laser edgebanding tape.
01
Feed the tape and adhesive film
02
Bond the film and tape with hot air
03
Collect the prepared laser edgebanding tape
02 / APPLICATION FIT
Check the material and process requirements.
01
Adhesive film type, tape material and film handling
02
Tape dimensions, roller width and pressure settings
03
Film adhesion and compatibility with the downstream edgebander
Continuous feed speed is below 20 m/min. Match the speed to the tape, film and required bond. Special adhesive colours require custom preparation.
03 / PROCESS & SAMPLES
See how it operates. Check the sample result.
VIDEO / TO BE ADDED
Machine in operation
Add a real machine demonstration with the material and configuration identified.
SAMPLE / TO BE ADDED
Coated tape surface
Add an approved close-up of the prepared edgebanding tape.
SAMPLE / TO BE ADDED
Adhesive layer detail
Add a matching detail photo with material and configuration notes.
Material
To be added
Configuration
To be added
Process conditions
To be added
04 / MACHINE CONFIGURATION
Machine components & configuration
01
Hot-air heating
Hot-air heating with temperature control.
DETAIL / TO BE ADDED
Hot-air heating
Add the corresponding approved component photograph.
02
Upper and lower pressure rollers
Synchronised upper and lower rollers with adjustable pressure.
DETAIL / TO BE ADDED
Upper and lower pressure rollers
Add the corresponding approved component photograph.
03
Tape feeding
Stepper-motor tape feeding guides the tape and adhesive film through the hot-air bonding section.
DETAIL / TO BE ADDED
Tape feeding
Add the corresponding approved component photograph.
Descriptions are based on the supplied documentation. Confirm standard equipment, optional features and the configuration supplied with your order.
EM-25 uses 220 V single-phase power and a compressed-air supply. The electrical specification is specific to EM-25.
05 / SPECIFICATIONS
Key specifications.
Power connection and continuous speed follow the latest company clarification. Other listed values are from the supplied brochure and manual.
| Item | Specification |
|---|---|
| Power supply | AC 220 V, 50 Hz; single-phase |
| Rated power | 4 kW |
| Continuous feed speed | Below 20 m/min; application-dependent |
| Compressed-air pressure | 0.35–0.5 MPa |
| Net weight | 190 kg |
